NOVA 14S Redline – Freestanding Laser Cutter/Engravers
| NOVA 14 S |
- Class 1 Laser
- Super Clean Pack Design
- 3-Phase High Speed DC Steppers
- Built-in Water Cooling System, Exhaust Fan, Air Assist Pump & High Pressure Air assist Compressor
- Max Acceleration 5G (DC) / 8G (RF)
- Max Speed 1200mm/s (DC Glass)
- Material Pass Through Door
- Z-depth up to 7-7/8” (200mm)
Starting at $19,490*
*price for Nova 14S model
 |
 |
 |
Up to 8G AccelerationFull AC Servo Motors make acceleration nearly instant at 8G of force with top speeds of 4,200 mm/sec on all RF models. |
Excellent PrecisionLinear guide rails with ball bearings offer greater precision and smoother motion, which improves print quality and longevity. |
Lightweight Laser HeadA lightweight laser head contributes to less over-scanning and an overall reduction in vibration.
|
 |
 |
 |
Robust UnibodyMost lasers employ a unibody structure where the components are bolted to a thin outer shell. However, if you have the need for speed, it’s of utmost importance to make the frame as rigid as possible to stop the machine from flexing. The Redline series frame is so robust, you can even remove the entire side panel for greater accessibility when troubleshooting. |
All-In-One DesignIn the NOVA’s Super Clean Pack design, not only are the linear rails and bearing blocks enclosed, but protective curtains on the left and right side rails now prevent unwanted particles from spreading beyond your work area. |
Modular Tube Docking StationQuickly swap between higher or lower wattage tubes as needed with the Modular Tube Docking Station. This toolless design allows you to switch between various wavelengths on all models, such as 1064nm Fiber lasers. This opens up a whole new world of possibilities by vastly increasing the range of materials one can process while delivering results of the utmost quality. |
 |
|
 |
High-Resolution CameraAll Aeon lasers are now equipped with built-in high-resolution cameras for precise positioning and monitoring. |
Integrated AutofocusSay goodbye to collisions and gouged material. The Aeon Redline Series has a newly designed laser head with integrated autofocus. |
Material Pass ThroughFor the Redline Series, an infinite front-to-back passthrough is included in all NOVA models. |
|
|
|
|
Bullseye Leveling GaugeEnsuring your laser is level can now be done at a glance. Both MIRAs and NOVAs are fitted with Bullseye Leveling Gauges. |
Status LightAeon is renowned for its stylish and sleek appearance. The Aeon Laser logo on the front access door panel is now backlit and doubles as a functional Status Light, illuminating white when in standby, red when an error is encountered, and green while in operation, adding both form and function to an already stunning design. |
Intuitive LCD DisplayThe most recent revision to the NOVA Keypad brings commonly used functions right to the surface, for reduced setup times and overall ease of use. You can even monitor water temperature, amperage (mA), air pressure (psi), and the temperature of your optics right from the vibrant 5″ LCD display, for the ultimate user experience. |
|
|
|
|
Toolless Maintenance: Tube ReplacementsSay goodbye to painstaking tube replacements. This innovative approach allows for swapping of tubes in and out of your Aeon laser, without having to renegotiate the beam path. This means it is now feasible to keep a spare tube on the shelf or quickly swap between higher or lower wattage tubes as needed. |
Toolless Maintenance: MirrorsAll mirrors are now easily accessible and can be cleaned or replaced without the use of any tools or having to recalibrate. |
Toolless Maintenance: Lens CartridgesThe lens cartridges on all Redline models are now magnetic and the focal lens itself is press fit with a silicone washer, for easy access. |
|
|
|
|
Proactive Smart MonitoringAll optics are now fitted with thermal sensors to record and report temperature readings to the keypad, thus eliminating the likelihood of unexpected failures. This proactive approach not only saves you from costly mistakes and downtime, it also reduces the need for frequent unwarranted cleaning. To top it off, the controller now records these readings along with ambient temperature, laser tube runtime and machine parameters, to serve as a diagnostic log in the event troubleshooting is needed. |
Safe-Guarded OpticsTo further reduce the need for maintenance, all optics are now fully removed from the work area, taking the Clean Pack Design to its highest potential. |
Safe-Guarded Laser HeadWith the laser head sealed to where no dust or debris can enter, all that remains are a series of cost effective windows, which are far easier to maintain and replace if needed. |
HH

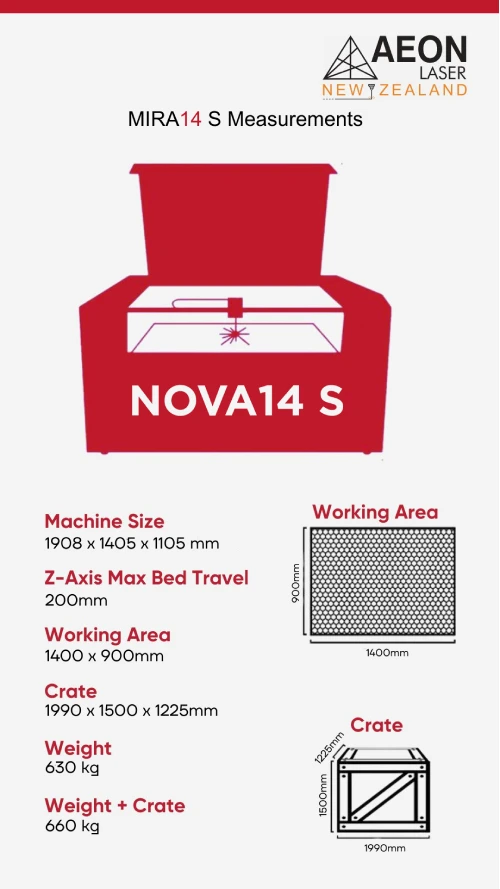

| Model | NOVA 14 S | |
| Machine Size | ||
| Working Area | 900mm x 1400mm | |
| Z-Axis Max Bed Travel | 200mm | |
| Machine Dimensions (mm) | 1908 W x 1405 D x 1105 H | |
| Machine Weight | 630kg | |
| Laser Source | ||
| DC Glass Tube | 100W/130W Premium CO2 Glass Tube | |
| RF Metal Tube | NA | |
| RF Ceramic Tube | 60W/100W/150W | |
| CO2 Glass Cooling Method | Water | |
| RF Metal Cooling Method | NA | |
|
RF Ceramic Cooling Method |
Water | |
| Performance | ||
| Motors | 3-Phase High Speed DC Steppers | |
| Clear Path DC Servos (Signature) | ||
| DC Servos (Signature) | ||
| Guide Rails | Hiwin Linear Rails | |
| THK Linear Rails (Signature) | ||
| Max Acceleration | 5G (DC)/8G (RF) | |
| Max Speed | 1200mm/s (DC Glass) | |
| 3500mm/s (RF Metal) | ||
| 5000mm/s (Signature) | ||
| Minimum Font Size | 1.0 x 1.0mm | |
| Positioning Accuracy | <=0.01mm | |
| Max Scanning Precision | 1000 DPI | |
| Max Lifting Capacity | 265lbs (120kg) | |
| Configuration | ||
| Water Chiller | Built-in S&A 5200 Vapor Compression Chiller | |
| Fume Exhaust Fan | Built-in 500W, 6″ Dia. Centrifugal Fan | |
| Air Assist | Built-in 10.5 gal (40L) Air Compressor | |
| Clean Pack Design | X,Y and Y Axis | |
| Autofocus | Integrated | |
| Wifi Data Transfer | Y | |
| Red Dot Positioning | Y | |
| Material Pass Through Door | Y | |
| Bullseye Leveling Guage | Y | |
| Dimmable Overhead Lighting | Y | |
| Smart Air Solenoid Valve | Y | |
| Modular Laser Tube Docking | Y | |
| Lid Material | Polycarbonate | |
| Table | ||
| Downdraft | Y | |
| Blade Table | Y | |
| Honeycomb Table | Y | |
| Material Collection Tray | N | |
| Control & Software | ||
| Control Panel | 5″ Keypad & LCD display | |
| Memory Capacity | 1GB | |
| Lightburn Software | Y | |
| Compatible Software | CorelDraw, Photoshop, AutoCAD, InkScape, or any software that can export into the supported file formats | |
| Operating System | Windows & Mac OSX | |
| File Formats Supported | AI, PDF, SC, DXF, HPGL, PLT, RD, SCPRO2, SVG, LBRN, BMP, JPG, JPEG, PNG, GIF, TIF, TIFF, TGA | |
| Optics | ||
| Toolless Mirror Change | Y | |
| Magnetic Lens Cartridge | Y | |
| Isolated Optics | Y | |
| 1.5″ Lens | NA | |
| 2″ Lens | Optional | |
| 2.5″ Lens | Standard | |
| 4″ Lens | Optional | |
| Mirror Sizes | φ25mm (x4) | |
| Beam Combiner | φ25mm | |
| Protective Window | φ20mm | |
| Safety | ||
| Safety Level | Class 1 | |
| Smart Monitoring | Y | |
| Optics Temperature Alarm | Y | |
| Diagnostic Log | Y | |
| Fire Supression | Optional | |
| LED Status Light | Y | |
| Lid Interlock | Y | |
| Side Panel Interlocks | Y | |
| Water Flow Protection | Y | |
| Water Temperature Alarm | Y | |
| Power Requirments | ||
| Voltage/Frequency | 110v/60Hz | |
| Amperage | 20A Dedicated Circuit *240v 30 amp plug required for any RF 150w laser |
|
| Rated Power Draw | 1400W (max wattage laser tube) | |
| Package | ||
| Package Size | 78-3/8″ x 59″ x 48-1/4″ (1990*1500*1225mm) |
|
| Packed Gross Weight (G.W) | 1455lbs (660kg) | |
| Add-Ons | ||
| Camera | Y | |
| Stand | Optional | |
| Smart Rotary | Optional | |
| Multi Roller | Optional | |
| Rotary Chuck | Optional | |
| PiBurn or Rotoboss | Optional | |
| Filtered Fume Extractor | Optional | |
| Wireless Remote Control | Optional | |
| Air Compressor | Optional | |
| Support | ||
| Knowledge Base | Y | |
| Email Support | Y | |
| Phone / Video Support | Unlimited | |
| Onsite Repairs | Y | |
| Parts on Demand | Y | |
| Startup Training | Y | |
| Warranty | 2 Year Factory Warranty + Extended Warranty options | |
|
Rotoboss RotaryHandle just about any type of drinkware with our USA made roto rotary. The dual height adjustable sides are perfect for positioning items with extreme tapers, while the spring-loaded third wheel keeps your cups from walking and from flying off the rollers. |
ROTARY CHUCKThe more precise way of handling cylindrical items is with this 3-jaw rotary chuck. Clamp any item up to 3.93” (100mm) in diameter and rotate it for 360 degree engraving. |
|
PiBurn GripThe PiBurn Grip is a chuck-style rotary attachment for laser engraving everything from rings and other smaller items to dog bowls and delicate glassware. The cup will not slip, so you can engrave in both directions, not just line by line. |
PiBurn 4.0 with magnetic feetThe PiBurn rotary allows you to engrave cylindrical objects such as cups, tumblers, glasses, bottles, and champagne flutes with ease and precision. PiBurn comes fully assembled with magnetic feet. |
|
Rotoboss Low Roller RotaryThe RotoBoss Low Roller is a low profile rotary attachment for smaller cabinet lasers offering a large range of engraving options not previously available with current rotaries on the market today. |
Multi-Roller RotaryMaximize efficiency by batching up to six 32 oz curved or six 20oz tapered tumblers all at once. Fits all Aeon laser models. Exclusive to Aeon Laser USA. |
|
EMP Matieral Storage CabinetOrganize your sheet stock with this stackable storage solution by EMP. |
Filtrabox Expand X-3 Fume ExtractorFume Extractor w/ 1-blower and high capacity 3 stage HEPA filtration. Extracts, filters and recirculates clean air into the workspace. Dimensions: 38″(H) x 15″(W) x 31″(D) Recommended for NOVA 14 and NOVA 16. |
|
Filtrabox Expand X-2 Fume ExtractorFume Extractor w/ 1-blower and high capacity 3 stage HEPA filtration. Extracts, filters and recirculates clean air into the workspace. Dimensions: 38″(H) x 15″(W) x 31″(D) Recommended for MIRA 9 (heavy duty only). |
Remote ControlProgramming is a breeze with our advanced DSP digital control system or an optional wireless remote that puts all of the controls right in the palm of your hand. |
|
CO2 LASER PROTECTIVE GOGGLESProtect your eyes from infrared light radiation that can compromise your vision over time. Glasses are designed for use with CO2 lasers (10.6um) only. |
FIRE EXTINGUISHER CO2 is the only type of fire extinguisher to have alongside your laser cutter – effective at extinguishing any material fires that may occur in the machine bed. CO2 will leave your laser cutter undamaged as opposed to the potentially terminal damage that a dry powder extinguisher will do! |
